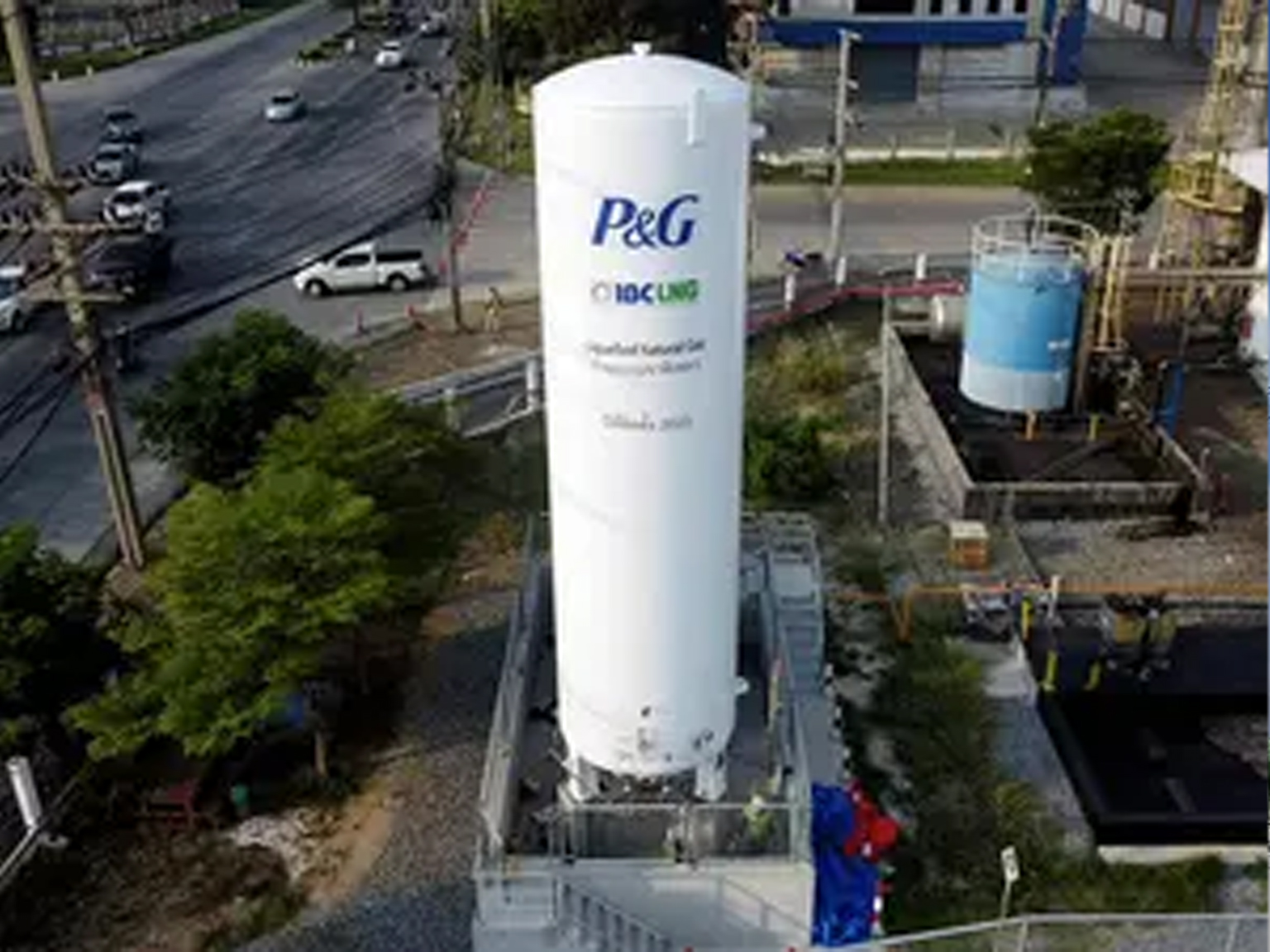

Risk Identification and HAZOP Analysis of Cryogenic Liquid Storage Tanks

Cryogenic liquid storage tanks play a critical role in the safe handling of liquefied gases such as liquid nitrogen, oxygen, argon, and LNG. While these tanks are designed with high safety and insulation standards, potential risks exist during manufacturing, operation, and maintenance. Conducting Hazard and Operability (HAZOP) analysis is an effective method to identify and mitigate these risks.

Key Risks in Cryogenic Storage Tanks

• Vacuum Failure
  Loss of vacuum insulation leads to rapid heat ingress, causing pressure rise, liquid boil-off, and safety hazards.

• Overpressure
  Blocked vent lines or malfunctioning safety valves may result in overpressure, increasing the risk of tank rupture.

• Leakage
  Faulty seals, weld cracks, or improper handling can lead to cryogenic liquid or vapor leaks, posing risks of asphyxiation, fire, or explosion depending on the stored medium.

• Material Brittleness
  Improper material selection at ultra-low temperatures may cause brittleness, cracks, and structural failure.

• Operational Errors
  Improper filling, fast pressurization, or poor training of operators may lead to unsafe conditions.

HAZOP Analysis in Cryogenic Tanks

HAZOP systematically examines deviations in process parameters such as pressure, temperature, level, and flow to identify potential hazards:

• High Pressure: Risk of rupture → Install redundant safety relief valves and pressure monitoring.

• Low Temperature Deviation: Risk of material embrittlement → Use cryogenic-grade stainless steel or aluminum alloys.

• No Flow / Blocked Flow: Risk of overpressure → Regular inspection and cleaning of vent and pipeline systems.

• Leakage: Risk of oxygen deficiency or fire → Gas detection systems and emergency shutdown procedures.

Risk Mitigation Measures

• Design Safety: Tanks should comply with ASME, PED, and GB standards, with high-quality insulation and robust safety devices.

• Operational Control: Provide training, SOPs, and continuous monitoring of tank parameters.

• Preventive Maintenance: Regular vacuum checks, valve testing, and leak detection.

• Emergency Preparedness: Install alarms, automatic venting systems, and ensure availability of personal protective equipment (PPE).

By combining risk identification with a structured HAZOP analysis, operators can significantly enhance the safety and reliability of cryogenic liquid storage tanks. Proactive prevention not only reduces operational risks but also extends equipment lifespan, ensuring safe and efficient handling of cryogenic liquids in industries such as energy, healthcare, metallurgy, and chemical processing.
